MPO MTP OM3 OM4 OM5 Fiber Patch Cord 24 Cores

  • 1
  • 2

Brand Name : Neutral/OEM

Model Number : MPO-LC Patch Cord

Certification : CE/ROHS/REACH/CPR/ISO9001/ISO14001

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, L/C, T/T, Paypal

Supply Ability : 100PCS/Day

Delivery Time : 3-5 working days

Packaging Details : Zip-lock Bag

Cores : 24 Cores

Fiber Type : Multimode OM3

Length : 3m, 5m or Customized

Cable : Diameter 3.0mm

Connector Type : MPO-LC Uniboot

Cable Jacket : LSZH, OFNR

Contact Now

Fiber Optic Cable 24 Cores MPO MTP OM3 OM4 OM5 Fiber Patch Cord


Fiber Optic 24 Cores MPO-LC Patch Cord Name:

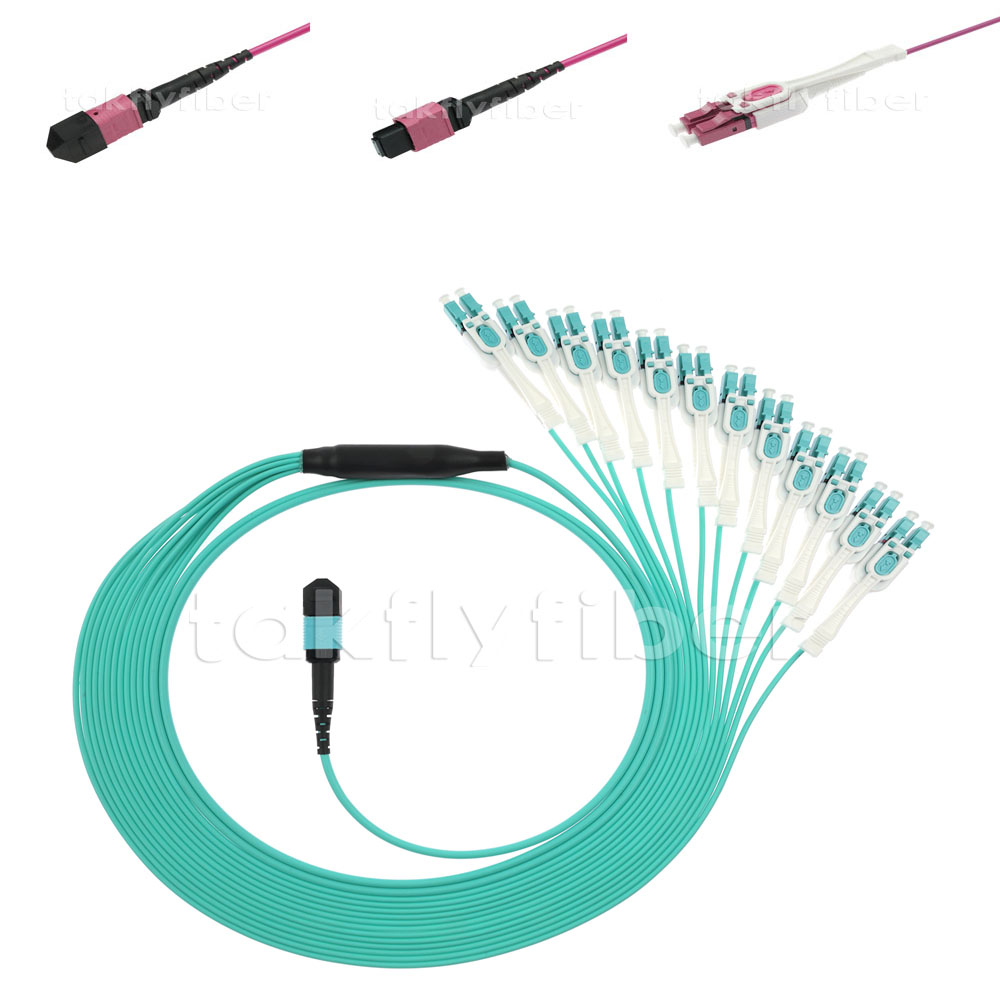

Patch Cord MPO-LC Uniboot 24 Cores Multimode OM3

Fiber Optic 24 Cores MPO-LC Patch Cord Description:

This MPO-LC Patch Cord is 24 Cores, Multimode OM3 in Aqua color LSZH outsheath.

Other 8 cores, 12 cores are also available.

OFNR or OFNP outsheath can be also customized.

Fiber Optic 24 Cores MPO-LC Patch Cord Features:

Precision molded MT ferrule
High precision guide pins for exact alignment
Compact design, up to 4,8,12,24 fibers
IEC 61754-7 Compliant
Cable diameter 3.0mm, and 4.5mm available

Fiber Optic 24 Cores MPO-LC Patch Cord Applications:

  • Telecommunication Networks
  • Active Deviced/Transceiver Interface
  • Gigabit Ethernet
  • CATV, Video and Multimedia
  • Premise Installations
  • Optical Switch interframe connections
  • Data Center

Fiber Optic 24 Cores MPO-LC Patch Cord Specifications:

Item LC,SC,ST,FC....... MPO/MTP
End face type PC,UPC and APC PC and APC
Fiber type SM(G652,G655,G657)；MM(OM1-OM5)
Core number 12, 24
Cable Diameter 0.9,2.0,3.0 Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm
Insertion loss(dB) ≤ 0.3 Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max)
Return loss(Min)

UPC SM:40dB

APC SM:60 dB

PC MM:25 dB

 SM: APC:60dB MM: PC:20dB
Test Wavelength (nm) SM:1310/1550 MM:850/1300
Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB
