Fiber Optic MTP MPO Trunk Cable Multimode OM3 OM4 3.0mm LSZH

Brand Name : TAKFLY

Model Number : MPO/MTP Patch Cord

Certification : CE, ROHS, REACH, CPR, ANANTEL, ISO9001, ISO14001

Place of Origin : Shenzhen, China

MOQ : 1 Piece

Price : USD

Payment Terms : T/T, Western Union, Paypal etc.

Delivery Time : 3-7 Working Days After Received The Payment

Packaging Details : Plastic bags + Cartons

Product name : Fiber Optic MTP / MPO - MTP / MPO Trunk Cable Multimode OM3 OM4 3.0mm LSZH

Connector : MPO / MTP (Male or Female)

Fiber Count : 8, 12, 16, 24 or Customized

Cable Length : 1M. 3M. 5M. 10M or Customized

Fiber type : SM（G652、G657）；MM（OM1-OM5）

Insertion loss（dB） : Standard：≤0.7(Max） Low Loss：≤0.35(Max）

Test Wavelength : SM:1310/1550nm ; MM:850/1300nm

Outer Sheath Material : PVC、LSZH、TPU

Bending radius （Static/Dynamic） : 10D/20D

Operating temperature : -20 to 70℃

Storage Temperature : -40 to 80℃

Application : FTTH FTTB FTTX Network, Telecom network, Data Center, fiber patch cord for Telecom, Fiber Optic Tool

Contact Now

Fiber Optic MTP / MPO - MTP / MPO Trunk Cable Multimode OM3 OM4 3.0mm LSZH

Fiber Optic MTP/MPO-MTP/MPO Trunk Cable - Features:
Precision molded MT ferrule
High precision guide pins for exact alignment
Compact design, up to 4,8,12,24 fibers
IEC 61754-7 Compliant
EIA/TIA-604-5 Compliant

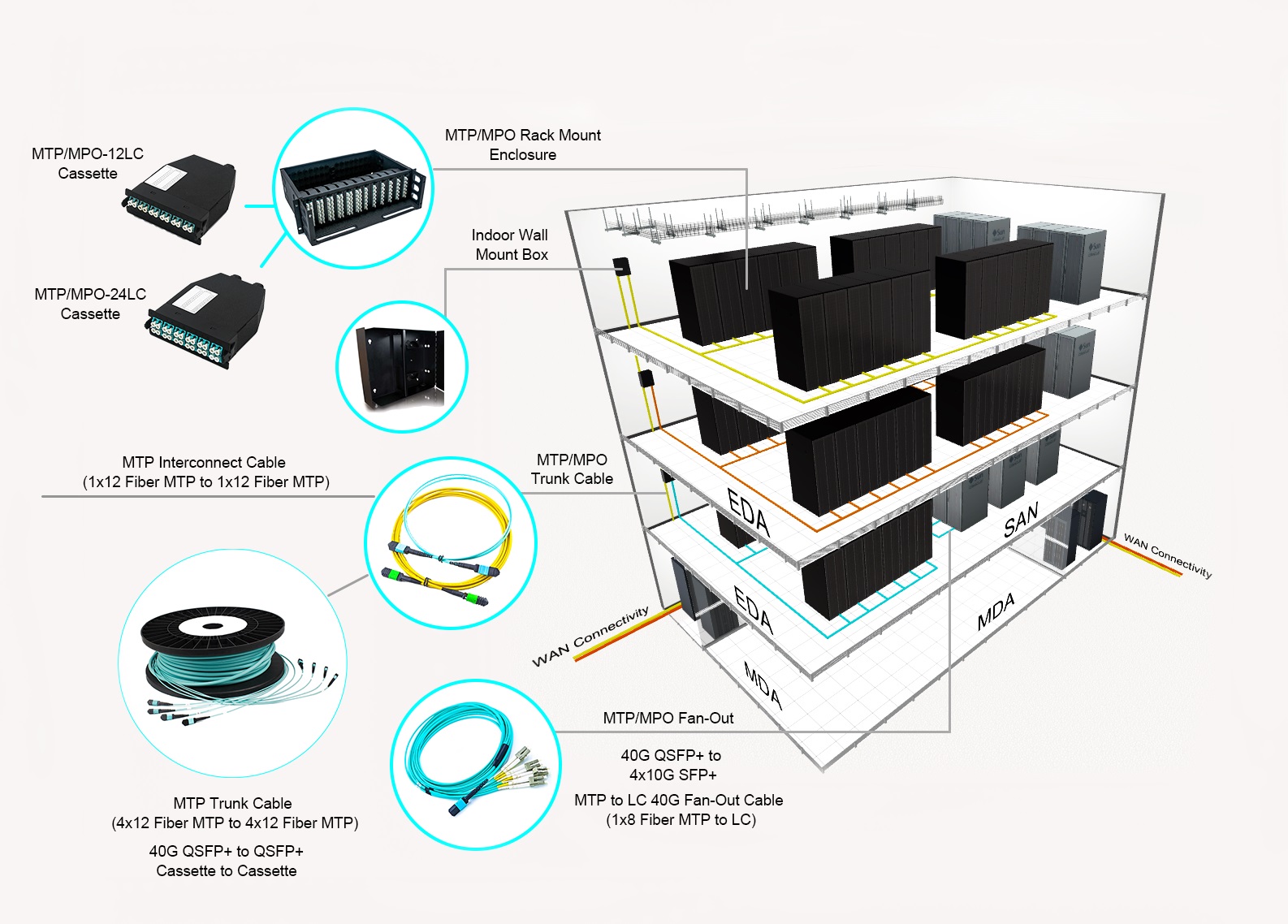

Fiber Optic MTP/MPO-MTP/MPO Trunk Cable - Applications:
Asynchronous Transmission Mode(ATM)
Gigabit Ethernet
Active Deviced/Transceiver Interface
CATV, Video and Multimedia
Premise Installations
Telecommunication Networks
Parallel optical interconnect between PC Cards and patch panels
Interconnection for O/E modules
Industrial & Military
Optical Switch interframe connections

Fiber Optic MTP/MPO-MTP/MPO Trunk Cable - Specifications:

Item LC,SC,ST,FC....... MPO/MTP
End face type PC,UPC and APC PC and APC
Fiber type SM(G652,G655,G657)；MM(OM1-OM5)
Core number 12,24
Cable Diameter 0.9,2.0,3.0

Mini Round cable:Max4.5mm；

Ribbon cable:Max3.0*5.0mm
Insertion loss(dB) ≤ 0.3

Standard:≤0.35/0.7(Typical/Max)

Low Loss:≤0.2/0.35(Typical/Max)
Return loss(Min)

UPC SM:40dB APC SM:60 dB

PC MM:25 dB

 SM: APC:60dB MM: PC:20dB

Test Wavelength

(nm)

SM:1310/1550

MM:850/1300
Repeatability ≤ 0.1dB
Durability ≤ 0.2dB
Interchangeability ≤ 0.2dB

Operating

Temperature

 -20℃~70℃

Storage

Temperature

 -40℃~80℃

Outer Sheath

Material

 PVC,LSZH

Bending radius

(Static/Dynamic)

 10D/20D
Length Customized

Fiber Optic MTP MPO Trunk Cable Multimode OM3 OM4 3.0mm LSZH

Fiber Optic MTP MPO Trunk Cable Multimode OM3 OM4 3.0mm LSZH

Fiber Optic MTP MPO Trunk Cable Multimode OM3 OM4 3.0mm LSZH

Fiber Optic MTP/MPO-MTP/MPO Trunk Cable - TAKFLY Overview:

Fiber Optic MTP MPO Trunk Cable Multimode OM3 OM4 3.0mm LSZH

Fiber Optic MTP/MPO-MTP/MPO Trunk Cable - TAKFLY Services:
1. Order inquiry: Keep working 24 hours to gurantee the first reply to clients,no Cellphone power off all the day
2. Order production: Keep very close touch with production department to gurantee the right delivery time to clients
3. Before shipment: Our sales would double check the order quantity,package and strength of cartons to avoid lost and damage
4. After shipment: Keep tracking shipping status and reporting to clients
5. Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR etc.


If you interest or have any question, Please feel free to contact us.
