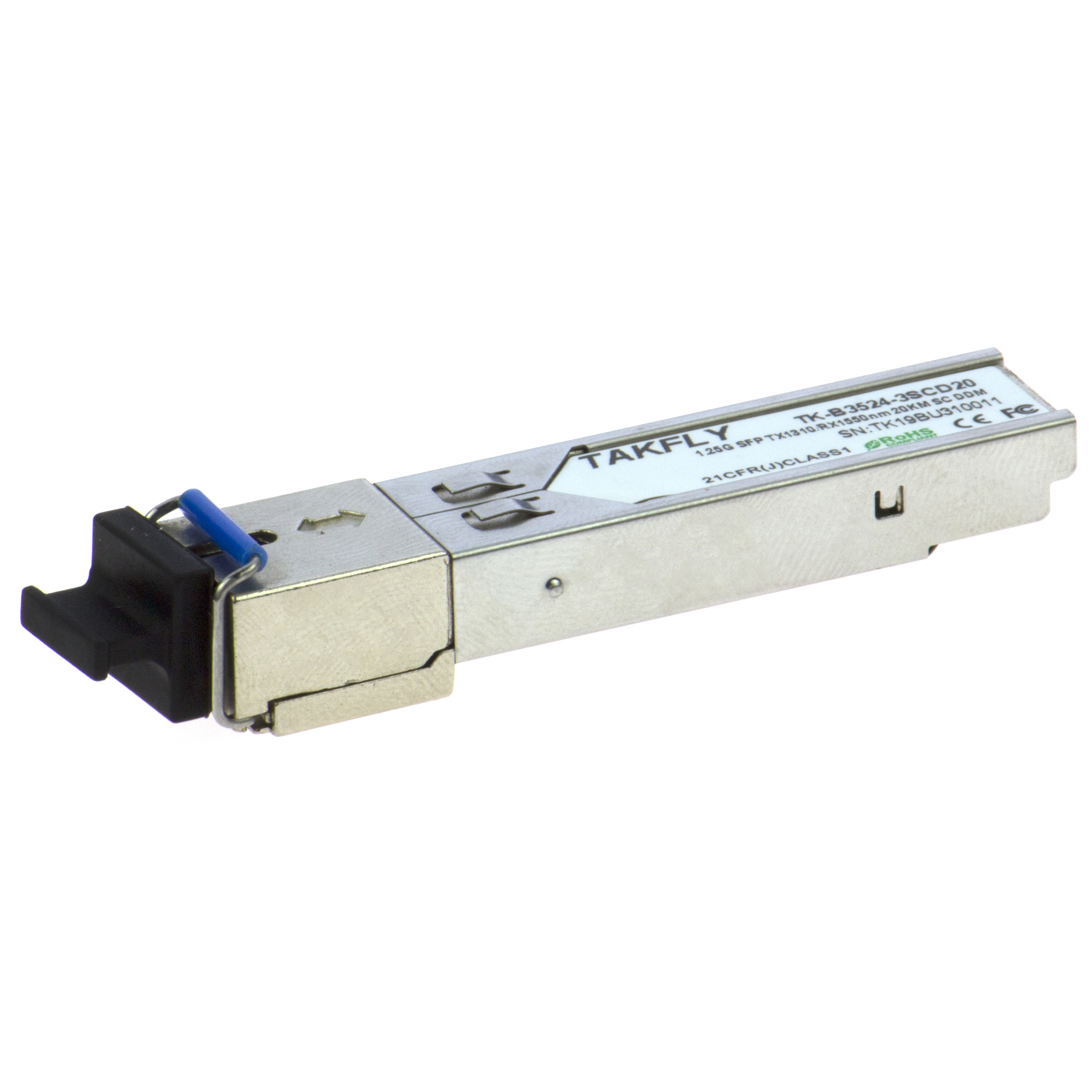

1.25G BIDI WDM SFP LX SM 3KM 10KM 20KM Tx1310 Rx1550 1000Base Optical SFP Transceiver Module SFP-1G-BXU-10
Description
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features
- Dual data-rate of 1.25Gbps/1.063Gbps operation
1310nm FP laser and PIN photo detector for 20km transmission
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:Standard : 0 to +70°C
Application
- SAN/Server
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Supply Voltage | Vcc | -0.5 | 4.5 | V |
| Storage Temperature | Ts | -40 | +85 | °C |
| Operating Humidity | - | 5 | 85 | % |
Optical and Electrical Characteristics
DF -3524x-L2C(D): (FP and PIN, 1310nm, 20km Reach)
Table 3 - Optical and Electrical Characteristics
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Transmitter |
| Centre Wavelength | λc | 1260 | 1310 | 1360 | nm | |
| Spectral Width (RMS) | ∆λ | | | 4 | nm | |
| Average Output Power | Pout | -9 | | -3 | dBm | 1 |
| Extinction Ratio | ER | 9 | | | dB | |
| Optical Rise/Fall Time (20%~80%) | tr/tf | | | 0.26 | ns | |
| Data Input Swing Differential | VIN | 400 | | 1800 | mV | 2 |
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |
| TX Disable | Disable | | 2.0 | | Vcc | V | |
| Enable | | 0 | | 0.8 | V | |
| TX Fault | Fault | | 2.0 | | Vcc | V | |
| Normal | | 0 | | 0.8 | V | |
| Receiver |
| Centre Wavelength | λc | 1480 | | 1580 | nm | |
| Receiver Sensitivity | | | | -23 | dBm | 3 |
| Receiver Overload | | -3 | | | dBm | 3 |
| LOS De-Assert | LOSD | | | -24 | dBm | |
| LOS Assert | LOSA | -35 | | | dBm | |
| LOS Hysteresis | | 1 | | 4 | dB | |
| Data Output Swing Differential | Vout | 400 | | 1800 | mV | 4 |
| LOS | High | 2.0 | | Vcc | V | |
| Low | | | 0.8 | V | |
Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 27-1 test pattern @1250Mbps, BER ≤1×10-12.
4. Internally AC-coupled.
Compatibility
All of Takfly's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, , Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc. For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Dimension
