Low Insert Loss OS2 MPO To Uniboot LC Bunch Cable MTP-LC SM Fiber Optic Fanout Cable

Brand Name : Takfly

Model Number : N/A

Certification : CE,ROHS,FCC,ISO9001,ISO141000

Place of Origin : China

MOQ : 1

Price : USD 20 ~ USD 100

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 2000pcs/month

Delivery Time : 1-3 working days

Packaging Details : bag+carton

Fiber Amount : 12

Connector A : MPO/MTP

Connector B : Uniboot-LC

Cable outer sheath : LSZH,OFNR,OFNP

Contact Now

Elite Type Low Insert Loss 12 Fiber Singlemode OS2 MPO to Uniboot LC Bunch Cable MTP-LC SM Fiber Optic Fanout Cable​

General Details:
Takfly MPO/MTP to LC SM/MM Fan-out/Breakout Harness cable assembly is mainly used for 10G/40G/100G, The LC fan-out cable with 2.0mm/3.0mm branch cable, the LC side could adopts uni-boot/single boot Duplex LC or dual boot duplex LC connector. The Harness MPO/MTP cable supports polarity support both type A, type B and type C.

Features:

  1. Fiber pre-position (AB/BA)
  2. Compact size, easy to manage
  3. LC/SC/ST/E2000 simplex/duplex connector available in single fiber connector interface
  4. MPO/MTP connector with 12 or 24 fibers
  5. Corning fiber available for selection
  6. Rugged fan-out: Round fan-out cable jacket with 2.0mm diameter
  7. Customized fan-out cable length to cater for different installation situations


Application:

  1. Data Center Infrastructure
  2. High Density Fiber Cabling System
  3. High integrated instrument and components
  4. High Precision Communication Device


Specification:
MPO/MTP Connector

Optical Parameters
Insertion Loss (dB) SM Standard SM Elite MM Standard MM Elite
≤0.7 ≤0.35 ≤0.5 ≤0.35
Return Loss (dB) ≥60(APC) ≥50(PC) ≥30
Durability (dB) ≤0.2 500 times mating
Tensile Strength (kgf) 10
Working Temperature (ºC) -40 ~ +85
Measurement Wavelength (nm) 1310/1550 850/1300
Avg. Fiber Height Error (nm) -300 +300
Central Concave (nm)

30

LC Connector

Fiber Mode Single Mode Multimode
Connector Polishing PC APC PC
Insertion Loss(dB) ≤0.3
Return Loss (dB) ≥50 ≥60 ≥35
Repeatability (dB) ≤0.2 1000 times mating
Working Temperature (ºC) -40 ~ +85
Measurement Wavelengths (nm) 1310/1550 850/1300

Product pictures:

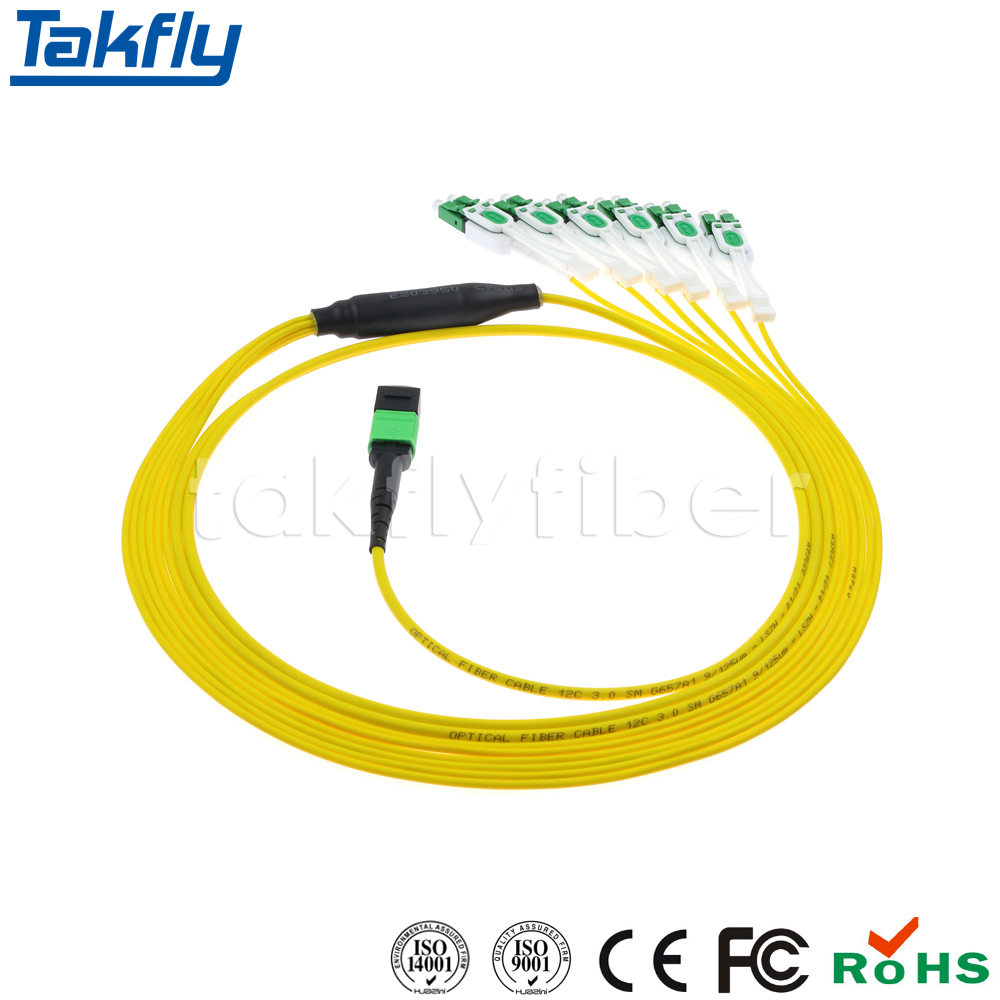

Low Insert Loss OS2 MPO To Uniboot LC Bunch Cable MTP-LC SM Fiber Optic Fanout Cable

Low Insert Loss OS2 MPO To Uniboot LC Bunch Cable MTP-LC SM Fiber Optic Fanout Cable

Low Insert Loss OS2 MPO To Uniboot LC Bunch Cable MTP-LC SM Fiber Optic Fanout Cable

Low Insert Loss OS2 MPO To Uniboot LC Bunch Cable MTP-LC SM Fiber Optic Fanout Cable


Takfly MPO/MTP workshop:

Low Insert Loss OS2 MPO To Uniboot LC Bunch Cable MTP-LC SM Fiber Optic Fanout Cable

Low Insert Loss OS2 MPO To Uniboot LC Bunch Cable MTP-LC SM Fiber Optic Fanout Cable
